Cyklop elastics are developped for all types of elastic binders
Binding Elastic
Especially for small and pressure-sensitive products-
The best choice is usually to bundle them using rubber
-
The minimal bundle diameter/ thickness is 7 mm

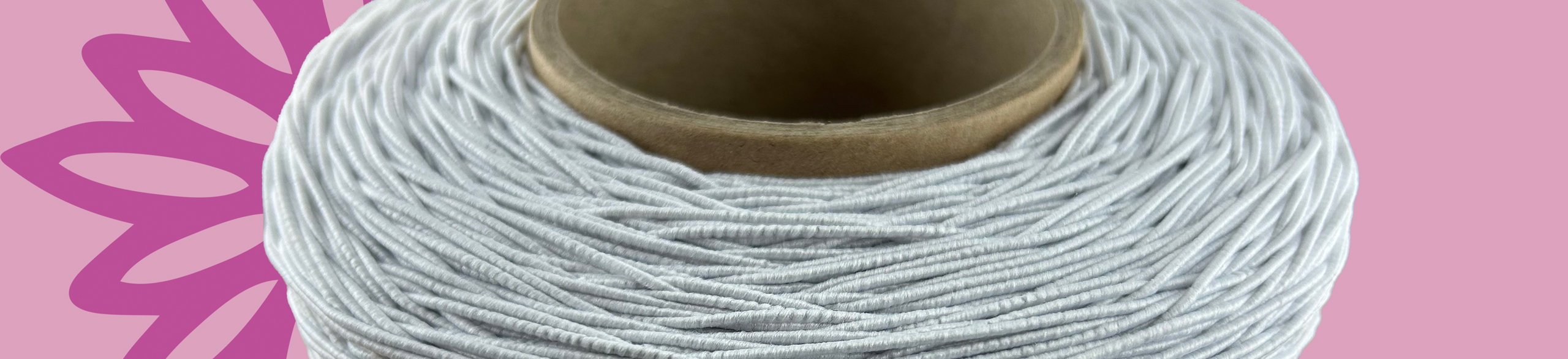

Cylastic Elastic cord for elastic binders
With our elastic cord for elastic binders the Cyklop AXRO binding machine is suitable for bundling various products, like (cut) flowers, bouquets, leeks, profiles, laths of wood, small sized printed matters and numerous semi-manufactured products. Also bundling products for internal transport and temporary storage with elastic cord is a justified and economical method.
Cylastic® is the best and most effective elastic cord for all your automatic equipment. This elastic cord is selected on its quality which is controlled by hi-tech test-equipment.
Cylastic® has the declaration of the Austrian Öko-Tex Standard 100 Product class II which means that the product can be in contact with skin.
For simple binding the elastic is equipped with 1 rubber core. For flowers, vegetables and herbs there is also a version with 3 rubber cores available. This makes sure the products stay together, but don't cut into the product! Standard the rolls are 1 kg, but for more efficiency 3,5 kg rolls (Jumbo) are available. You will enjoy the constant quality Cyklop elastic gives!
3 types are available:
Cylastic PE Specifications:
-
Breaking strength 55 N
-
Stretch: 240%
-
Available in various colours
-
Versatile in use
-
Special elastic is obtainable for the food industry
-
Also obtainable in a Jumbo roll, 4 x as much elastic on 1 roll
-
For use in AXRO elastic binders.
Cylastic PCS 1300 Specifications:
-
Breaking strength 65 N
-
Stretch: 245%
-
Available in various colours
-
Versatile in use
-
For use in AXRO elastic binders.
Cylastic 3K Specifications:
-
Breaking strength 110 N
-
Stretch: 310%
-
Available in various colours
-
Versatile in use
-
Special elastic is obtainable for the food industry
-
For use in AXRO elastic binders.
Cyklop binding Elastic in action
Do you have more questions about
Cyklop binding Elastic?
Call us at +31 88 425 62 40
Quote request
Click to open the quote request
- Hits: 5534

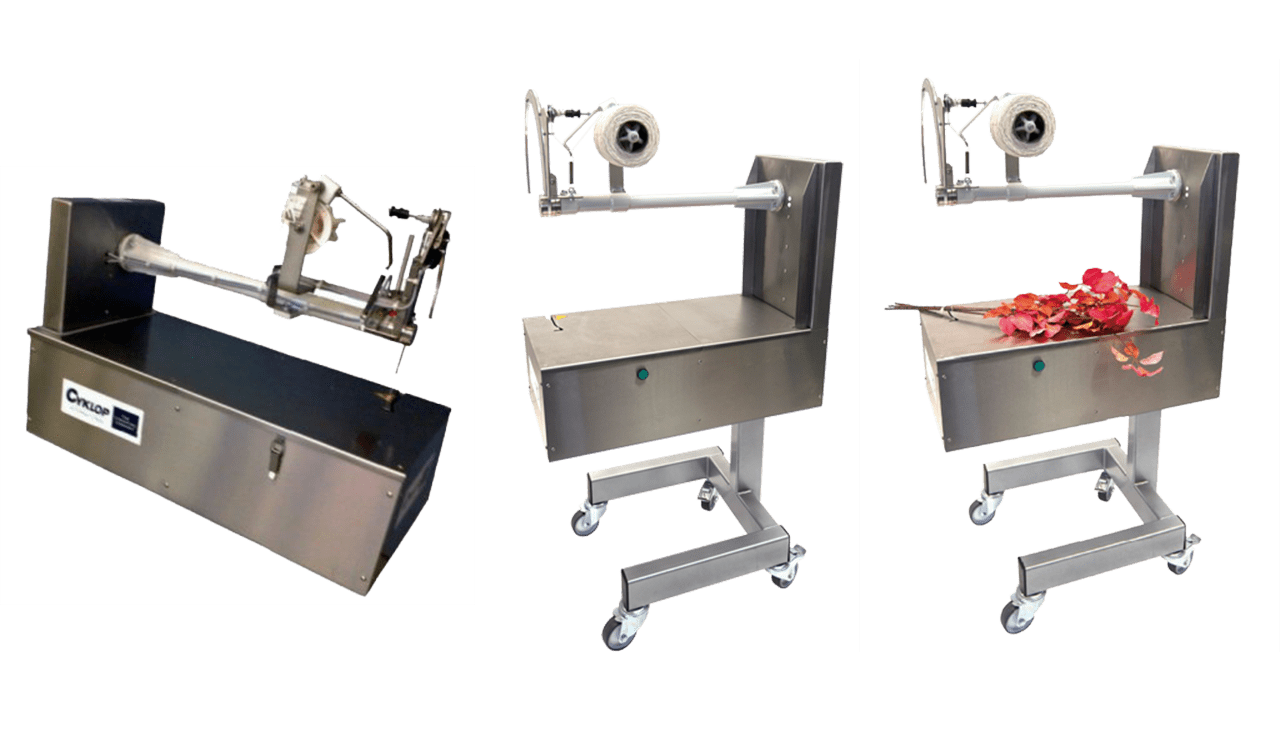

XL Elastic Binder
MD35 / MD60
-
Throughput depth max 350 mm or 600 mm
-
Capacity up to 60 cycles/ minute
-
Max height 150 mm
-
Elastic string Cylastic PC s1300 , Cylastic PES

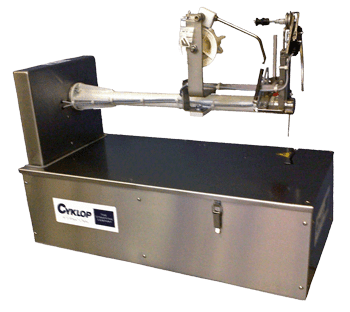

AXRO MD 35/60 ELASTIC BINDER
The Cyklop elastic binder MD series is especially designed for longer and heigher products.
The Axro MD 35/60 has the Axro binding techniques, which has for years been used in other Axro models. The Axro MD 35/60 is designed for strapping products with a maximum of 300 mm or 600 mm in depth.
Advantages:
For elastic cord Cylastic PES, Cylastic PCs 1300, Cylastic 3K-
Can be integrated into automatic machine lines
-
Starter switch: Foot pedal, photocel, laser or PLC
-
Up to 60 cycles / minute
-
Maximum throughput height is 150 mm
-
Driven throughput with a depth of 350 mm (MD35) or 600 mm (MD60)
-
Robust and reliable
-
Low maintenance
-
Extremely easy operation
-
Low noise
-
Optional moveable, 4-wheel support frame
MD35 / MD60 in action
Do you have more questions about
MD35 and / or MD60?
Call us at +31 (0) 88 425 62 40
Quote request
Click to open the quote request
- Hits: 5301

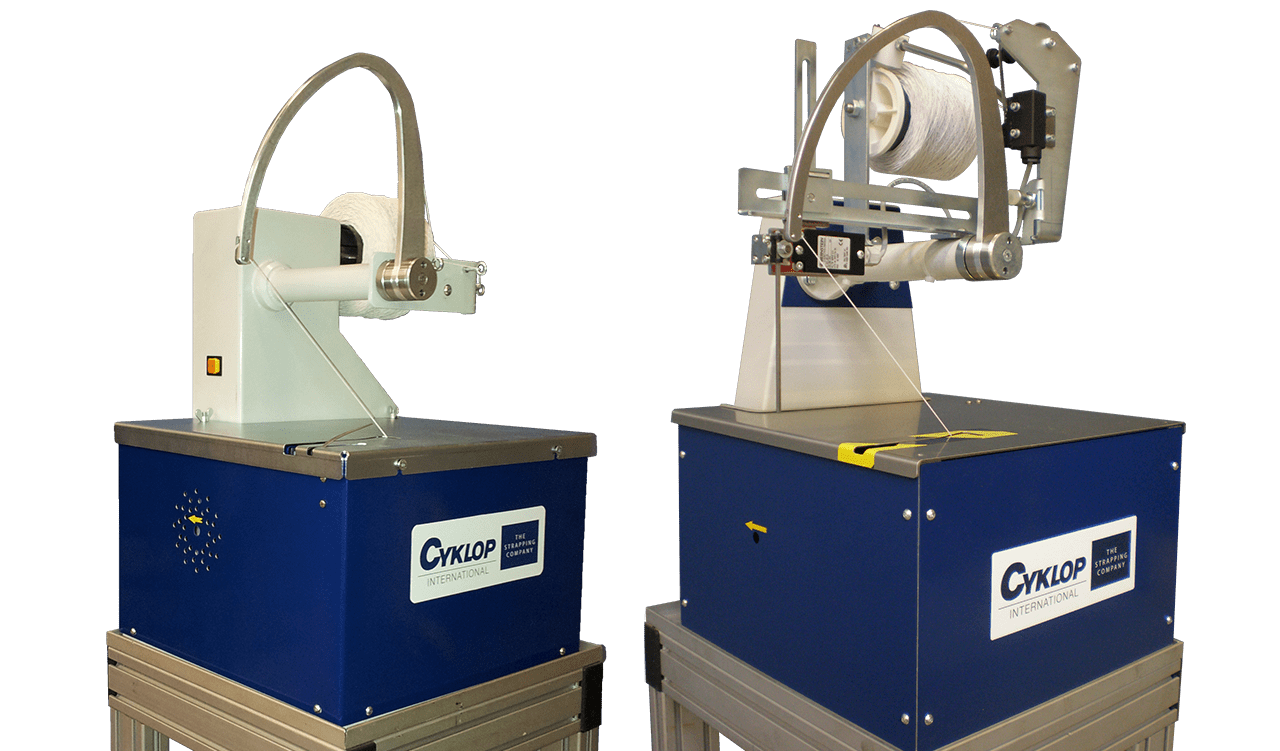

AXRO2BASIC
manual operation
AXRO FQC2
manual or automatic
-
Suitable for Elastic string Cylastic PE, PSc 1300, 2K, 3 K
-
Very easy operation
-
Strong, robust design for heavy use
-
Low maintenance and easy to clean
-
Low noise level
Basic operation
The products are passed along the table surface through the pre-draped elastic cord. The machine switches on: the needle arm pulls the elastic cord behind the bundle into the tying mechanism. The ends of the elastic cord are tied and then cut. A new end of elastic cord returns with the needle to the “up position” completing the cycle. The tied product can be removed.
General specifications
AXRO2BASIC
Capacity up to 3600 cycles/hour
Push-in from left to right, only for manual operation
AXRO FQC2
Capacity up to 6000 cycles/hour
Standalone machine or in an automatic line

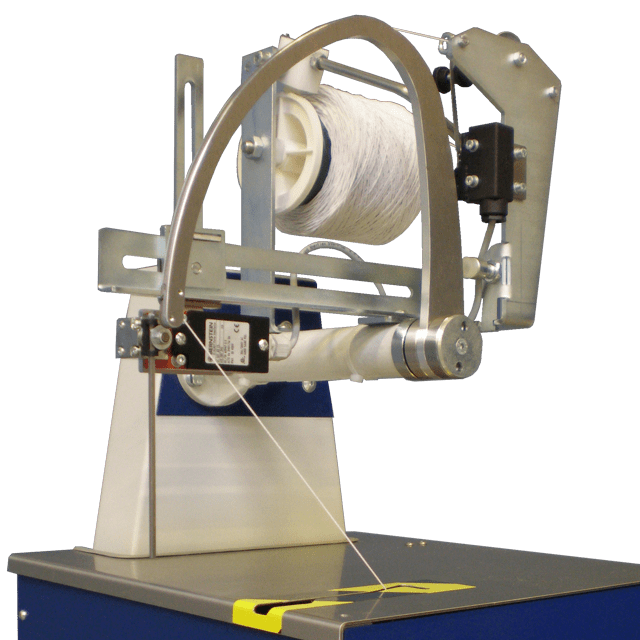

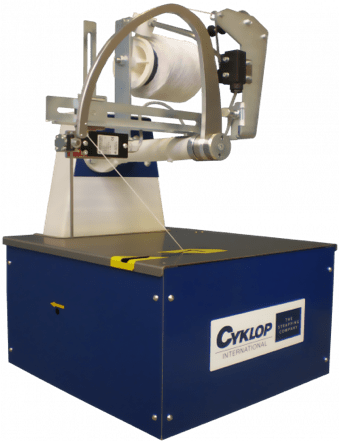

AXRO FQC-2 Elastic binding for flowers
The AXRO-FQC2 elastic binding machine is equipped with a robust feed-in mechanism, which ensures that the product is properly bound even with a fast binding time. The AXRO-FQC2 is also equipped with a knotter release system (KRS), which controls the release of the knot. The advantage of this is that there is a minimal pull on the (soft) product, so that no damage will occur. The AXRO-FQC2 is a compact and light machine and can function as a standalone machine or in an automatic line.
-
Capacity up to 6000 cycles/ hour
-
Power: 200-240 V - 50-60 Hz - 1 phase /
100-120 V - 50-60 Hz - 1 phase -
Feed through height 150 mm, depth 250 mm
-
Push-in from left to right (standard) or right to left
-
Trigger in tabletop / microswitch or laserswitch
-
String tension adjustable up to 110 N
-
Optional:
Support frame with 4 swivel wheels, 2 with brake
The elastic binding machine is mounted on a solid, flat aluminium base plate. Easy to use The product is pushed against the elastic. The machine switches on and the needle arm pulls the elastic string behind the bundle in to the tying mechanism. The elastic ends are knotted and cut. The end of the elastic string returns with the needle arm to the “up position“and is ready for a new cycle. Everyone can bundle products quickly and professionally with the AXRO-FQC2!

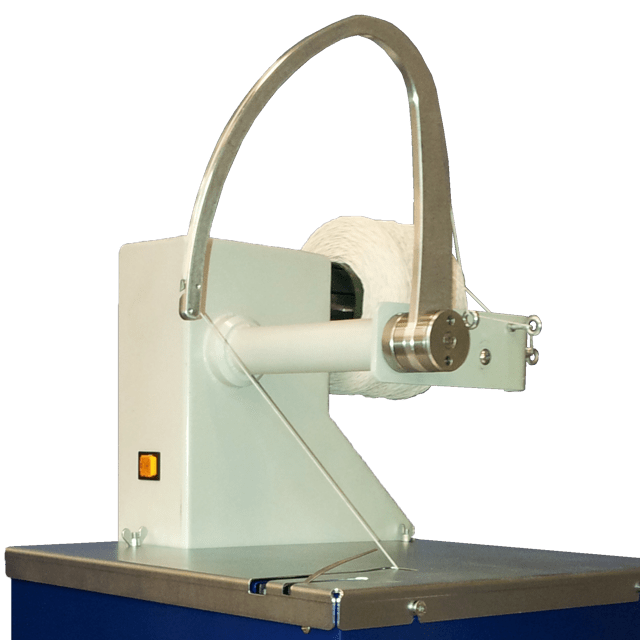

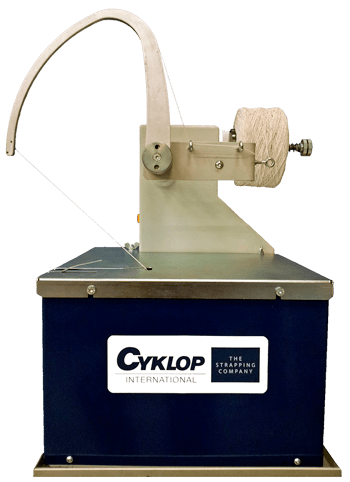

AXRO2BASIC Elastic binding machine
Cyklop’s elastic binders have been an established industry standard for many years now. The AXRO2Basic is a well designed elastic binder based on our many years of experience.
Continuous development and consistent quality is guaranteed. The binder is suitable for manually bundling small manageable products with elastic, such as flowers, tubing, cables, and many other products.
-
Capacity up to 3600 cycles/ hour
-
Power: 230 V, 50 Hz, 1 ph
-
Feed through height 140 mm, depth 239 mm
-
Push-in from left to right, only for manual operation
-
Trigger in tabletop
-
String tension adjustable
-
Optional:
Support frame with 4 swivel wheels, 2 with brake
AXRO Basic / AXRO FQC-2 in action
Do you have more questions about
AXRO Basic and / or AXRO FQC-2?
Call us at +31 88 425 62 40
Quote request
Click to open the quote request
Read more …Cyklop AXRO Basic / AXRO FCQ-2
- Hits: 5850

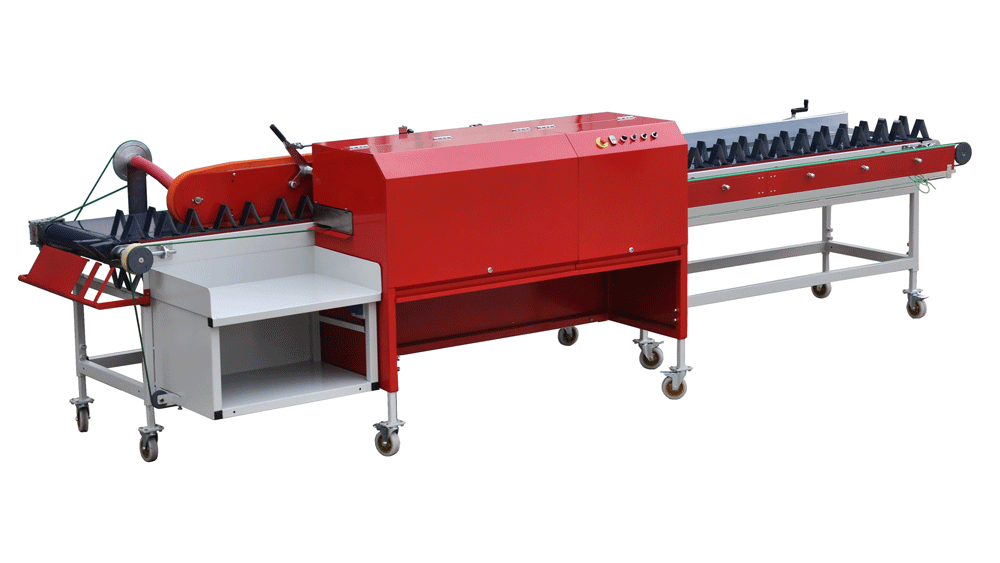

T4100 universal BTM Machine
-
High-end solution for lines > 20 meters!
-
The BTM T 4100 is a high quality machine, which answers to all expectations.
-
Ideally suited for professional growers and bouquet makers.
-
The heavy-duty under frame makes the T4100 stable.
Key aspects T4100 Uniflor Line
The T4100 BTM machine Uniflor guarantees high production quality, optimum uniformity and considerable labor savings. In addition, the transport system is extremely product-friendly and the T4100 can be used on almost all flower crops. The Uniflor can also be easily adjusted because the machine is made up of various functional modules. While developing the T4100 a lot of attention is given to ergonomics and durability. A very luxurious option is: by pushing only one button the BTM machine adjusts itself automatically in order or process the kind of flowers the operator selects
Features
Smarter
PLC steering of the system enables the perfect working speed and safety checks
More safe
When the elastic breaks, the machine stops to prevent from having incomplete bundles
Stronger
The powder-coated frame and a PE conveyor belt ensure a long service life
Better
Proven mechanical and elektronic components are used for many years
General specifications
Specifications:
-
System integrated processing cabinet and binder positions
-
System length from 5,3 up to 24 meters
-
Belt width 600, 1.000 or 1.200 mm, pitch of roof belt can be tailored to your specs
-
Variable belt speed, max. 3.000 bunches/hour
-
Standard Single de-leafing system (variable speed), with 4 axle, 22 cm deleafing
-
Optional deleafing system (variable speed), with 4 axles up to 30 cm
-
Index board for flower length control
-
Up to 5 binders (fixed position)
-
Rotating saw (with 1,5 kW engine with brake) or cutting knife
-
Resilient cloth at end of the line (or buffer belt)
-
Option for integrated waste belt system, special buffer belt and System with photocell switch and step-less distance regulation between the bundles
-
Also emergency-stop and bunch counters are available
With the BTM flower processing machinery you can realize:
-
Cost Saving: The longer your season, and the higher your labour cost, the shorter your payback time.
-
Capacity Increase: On line can process up to 3.000 bundles/hour. Easy to work longer hours if needed.
-
Constant Quality: Every bunch will have the same finishing quality, independent of the labour used!
T4100 in action
