AXRO2BASIC

manual operation

AXRO FQC2

manual or automatic

Suitable for Elastic string Cylastic PE, PSc 1300, 2K, 3 K
Very easy operation
Strong, robust design for heavy use
Low maintenance and easy to clean
Low noise level

Ask for a quote

Play video

Basic operation

The products are passed along the table surface through the pre-draped elastic cord. The machine switches on: the needle arm pulls the elastic cord behind the bundle into the tying mechanism. The ends of the elastic cord are tied and then cut. A new end of elastic cord returns with the needle to the “up position” completing the cycle. The tied product can be removed.

General specifications

AXRO2BASIC

Capacity up to 3600 cycles/hour

Push-in from left to right, only for manual operation

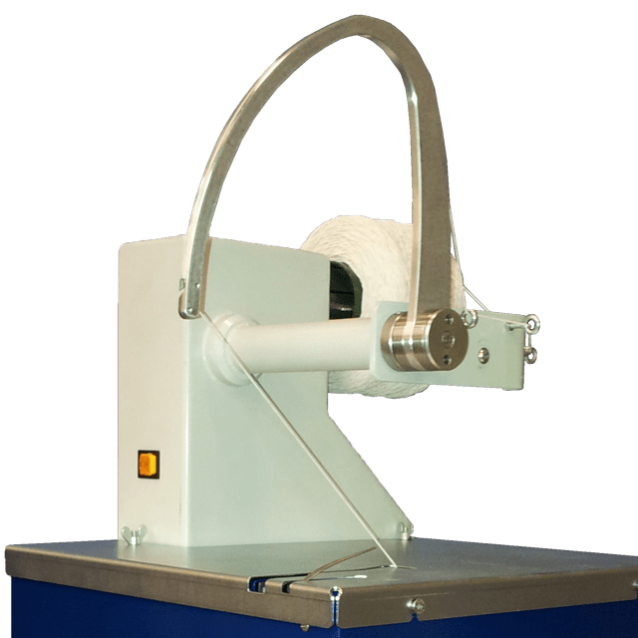

AXRO2BASIC Elastic binding machine for flowers

AXRO FQC2

Capacity up to 6000 cycles/hour

Standalone machine or in an automatic line

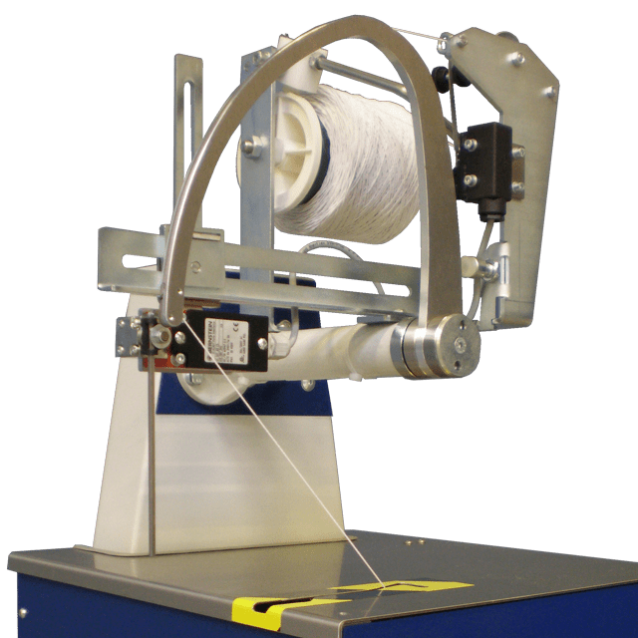

AXRO FQC2 automatic elastic binding machine

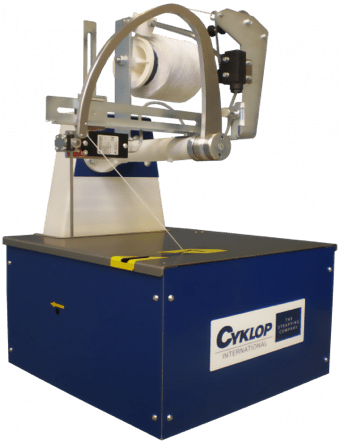

AXRO FQC-2 Elastic binding for flowers

The AXRO-FQC2 elastic binding machine is equipped with a robust feed-in mechanism, which ensures that the product is properly bound even with a fast binding time. The AXRO-FQC2 is also equipped with a knotter release system (KRS), which controls the release of the knot. The advantage of this is that there is a minimal pull on the (soft) product, so that no damage will occur. The AXRO-FQC2 is a compact and light machine and can function as a standalone machine or in an automatic line.

Capacity up to 6000 cycles/ hour
Power: 200-240 V - 50-60 Hz - 1 phase /
100-120 V - 50-60 Hz - 1 phase
Feed through height 150 mm, depth 250 mm
Push-in from left to right (standard) or right to left
Trigger in tabletop / microswitch or laserswitch
String tension adjustable up to 110 N
Optional:
Support frame with 4 swivel wheels, 2 with brake

The elastic binding machine is mounted on a solid, flat aluminium base plate. Easy to use The product is pushed against the elastic. The machine switches on and the needle arm pulls the elastic string behind the bundle in to the tying mechanism. The elastic ends are knotted and cut. The end of the elastic string returns with the needle arm to the “up position“and is ready for a new cycle. Everyone can bundle products quickly and professionally with the AXRO-FQC2!

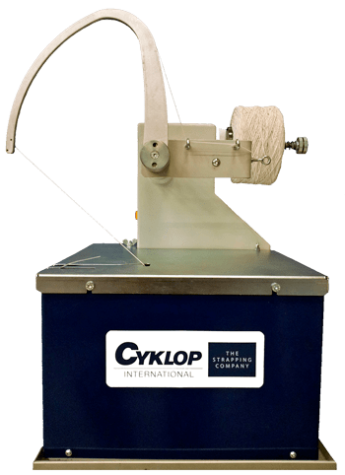

AXRO2BASIC Elastic binding machine

Cyklop’s elastic binders have been an established industry standard for many years now. The AXRO2Basic is a well designed elastic binder based on our many years of experience.

Continuous development and consistent quality is guaranteed. The binder is suitable for manually bundling small manageable products with elastic, such as flowers, tubing, cables, and many other products.

Capacity up to 3600 cycles/ hour
Power: 230 V, 50 Hz, 1 ph
Feed through height 140 mm, depth 239 mm
Push-in from left to right, only for manual operation
Trigger in tabletop
String tension adjustable
Optional:
Support frame with 4 swivel wheels, 2 with brake

AXRO Basic / AXRO FQC-2 in action
